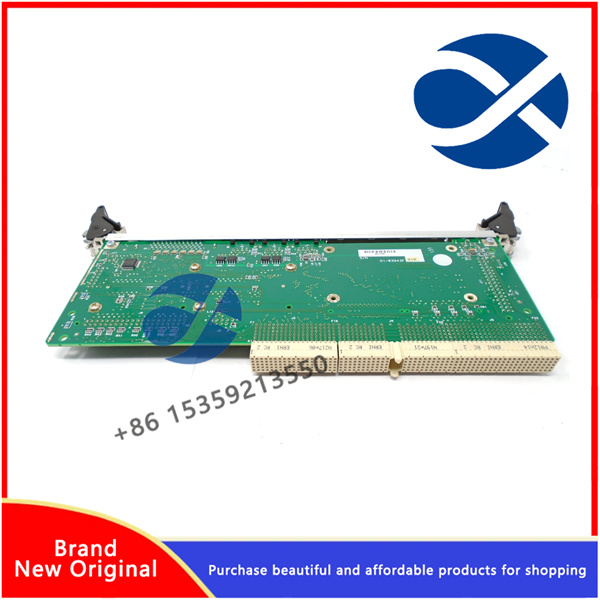

MOTOROLA CPCI-6020TM Processor Board

Core hardware and computing capabilities
CPU：MPC7410 PowerPC，500MHz， Low power consumption and high performance
Cache: 2MB L2 cache, significantly reducing latency
Memory: onboard 256MB SDRAM, supports ECC
Storage: CompactFlash slot (system/program storage)
Bus architecture: Dual PCI bus+64 bit CPCI bridge, main control/system controller
core functionality
1) System master control and real-time control (most critical)
As the main controller of CPCI chassis, manage the entire I/O, communication, and scheduling of the chassis
Hard real-time operating system support (VxWorks, etc.), suitable for industrial automation, process control, interlock protection, etc
Onboard Debug monitoring+self diagnosis, power on self-test, fault location
4 x 32-bit timer+3 x watchdog (WDT) to prevent crashes and automatically reset
2) Network and Communication (Data Interaction)
Dual 10/100Mbps Ethernet: redundant network, control network/data network separation
4 x serial port: 2 x asynchronous (RS-232/422/485)+2 x asynchronous/synchronous, compatible with instruments PLC、 serial port device
USB 1.1: Connecting peripherals/debugging
PMC expansion slot: capable of inserting network cards, serial port cards, motion control cards, etc., with strong expansion capabilities
3) High reliability and redundancy (military/industrial grade)
Compliant with PICMG 2.0 CPCI standards, earthquake resistant, anti-interference, and wide temperature range (-40 ℃~+85 ℃)
Support hot plugging (can be replaced online inside the chassis)
DMA direct memory access: high-speed data transfer, reducing CPU burden

Our products are widely used in CNC mechanical metallurgy, petroleum and natural gas, and petrochemical industries,
Chemical industry, paper and printing, textile printing and dyeing, machinery, electronic manufacturing, automobile manufacturing,
Plastic machinery, electricity, water conservancy, water treatment/environmental protection, municipal engineering, boiler heating, energy, power transmission and distribution.
The quoted price is not the actual price. Please contact the shopkeeper before placing the order to confirm the price and delivery time!!!
