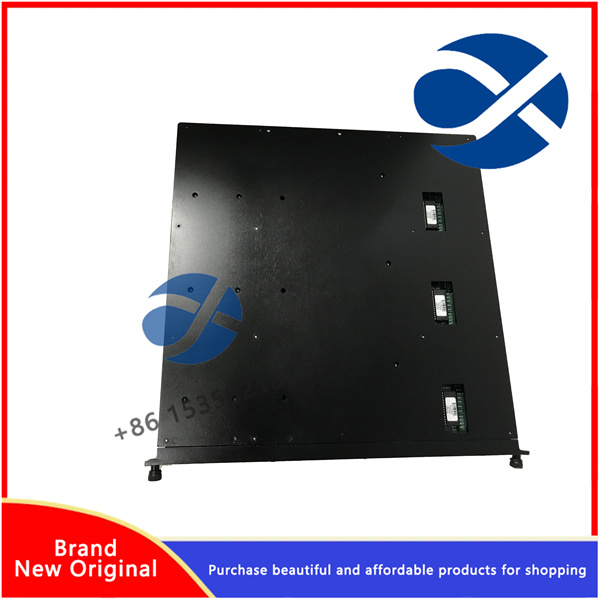

TRICONEX 3806E Analog Output Module

Core parameters
Channel: 8 independent analog outputs, DC coupled.
Output range: 4-20mA (default, supports+6% over range up to 21.2mA); Optional 0-10VDC.
Resolution: 12 bits.
Accuracy: ± 0.25% FS (0-60 ° C).
Load capacity: Current mode ≤ 500 Ω; Voltage mode ≥ 1k Ω.
Isolation: There is no isolation between channels; Inter group isolation 1500VAC.
Response time: ≤ 10ms (typical).
Overvoltage protection: Output terminal 42.5VDC continuous.
Power supply: 5VDC (backplane), with a power consumption of approximately 5W.
Temperature: 0 ° C~+60 ° C (industrial grade).
Size/Weight: Standard 6U VME, approximately 1.5kg.

Core functionality
TMR redundant output: 3 independent DAC synchronous outputs per channel, hardware voting, single channel fault disturbance free switching.
Signal Drive and Adaptation: Standard 4-20mA/0-10V signal, compatible with various intelligent valve positioners, pneumatic control valves, and variable frequency actuators.
Intelligent diagnosis: self diagnosis of wire breakage/short circuit/over range/power supply abnormality, LED status indication+system log, supports online replacement.
System integration: seamlessly integrated with Tricon host and EIC/Rident platform, used for ESD emergency shutdown, F&G fire and gas control, boiler/turbine regulation.

Application scenarios
Petrochemical industry: reactor temperature/pressure regulation, emergency relief valve control
Electricity: turbine speed/load control, boiler feedwater/fuel regulation
Oil and gas: pressure control of long-distance pipelines, anti surge regulation of compressors
