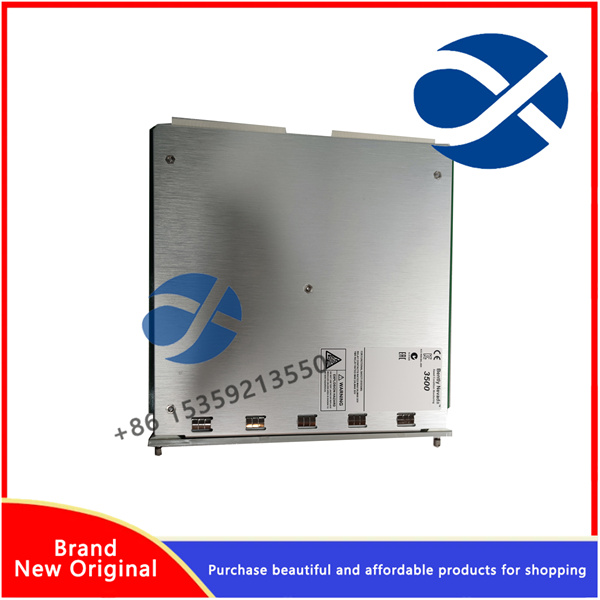

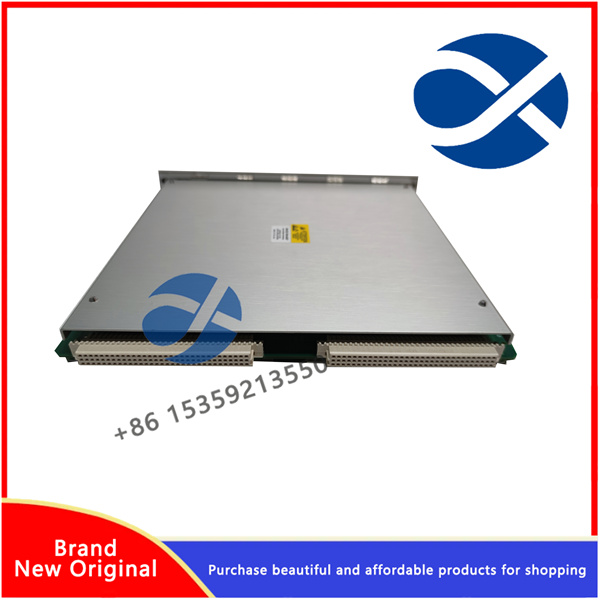

BENTLY 3500/60 163179-01 Temperature Monitors
Manufacturer: BENTLY
model name:3500/60 163179-01
Country of Origin: Finland (FI)
Estonia (EE)
Customized: Yes
Minimum order quantity: 1 piece
Order multiplier: 1 piece
Part type: New
WhatsApp：15359213550
WeChat：15359213550
BENTLY 3500/60 163179-01 Temperature Monitors
Specifications
Inputs
Signal: Accepts from 1 to 6 RTD or TC transducer inputs.
Input Impedance: Greater than 10 MΩ per lead input.
Power Consumption
3500/60: Nominal 7 W
3500/61: Nominal 9 W
Transducers
Thermocouples (TCs)
| Type | Measurement Range (°C) | Measurement Range (°F) | Notes |
|---|---|---|---|
| E | -100 to +1000 | -148 to +1832 | When using isolated thermocouple I/O modules (-03 or -04 options) and operating above +35°C ambient, the full-scale range reduces to -60°C to +1000°C (-76°F to +1832°F). Although the rack configuration software allows configuration down to -100°C, the system will not operate correctly under those conditions and should not be set to those values. |
| J | -18 to +760 | 0 to +1400 | — |
| K | -18 to +1370 | 0 to +2498 | — |
| T | -160 to +400 | -256 to +752 | — |
Resistance Temperature Detectors (RTDs)
| RTD Type | Configuration | Range (°C) | Range (°F) | With External Barriers (°C/°F) |
|---|---|---|---|---|
| 100 Ω Platinum (α = 0.00385) | 3-wire & 4-wire | -200 to +850 | -328 to +1562 | -50 to +850 / -122 to +1562 |
| 100 Ω Platinum (α = 0.00392) | 3-wire & 4-wire | -200 to +700 | -328 to +1292 | -50 to +260 / -122 to +1292 |
| 120 Ω Nickel | 3-wire & 4-wire | -80 to +260 | -112 to +500 | -50 to +260 / -122 to +500 |
| 10 Ω Copper | 3-wire & 4-wire | -100 to +260 | -148 to +500 | -50 to +260 / -122 to +500 |
Note: Platinum RTDs with α = 0.00385 are the global industrial standard and are recommended for all applications.
I/O Modules
Isolated I/O Module Specifications:
System Isolation: 500 VDC
Channel-to-Channel Isolation: 250 VDC
Isolation is designed for fault conditions only. These voltages are not present on I/O inputs under normal operation or typical field fault scenarios.
Outputs
Front Panel LEDs
| LED | Description |
|---|---|
| OK | Indicates that the Temperature Monitor is operating properly. |
| TX/RX | Indicates active communication between the Temperature Monitor and other modules within the 3500 rack. |
| Bypass | Illuminates when the Temperature Monitor is in Bypass Mode. |
BENTLY 3500/60 163179-01 Temperature Monitors
Our products are widely used in CNC mechanical metallurgy, petroleum and natural gas, and petrochemical industries,
Chemical industry, paper and printing, textile printing and dyeing, machinery, electronic manufacturing, automobile manufacturing,
Plastic machinery, electricity, water conservancy, water treatment/environmental protection, municipal engineering, boiler heating, energy, power transmission and distribution.
The quoted price is not the actual price. Please contact the shopkeeper before placing the order to confirm the price and delivery time!!!
Contact information:+86 15359213550
