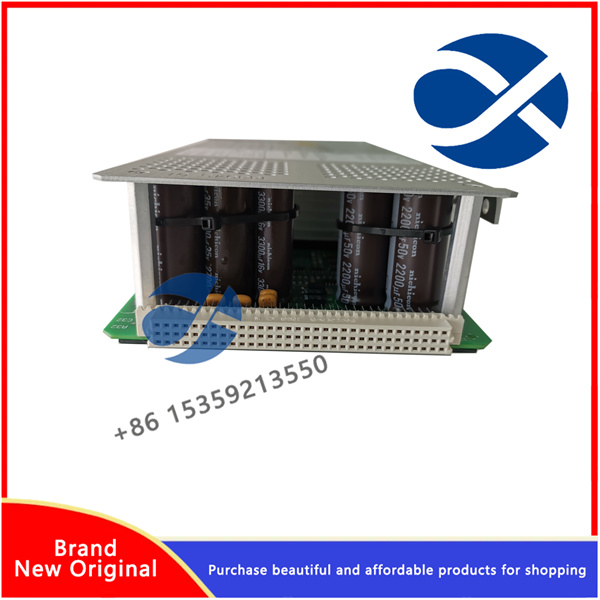

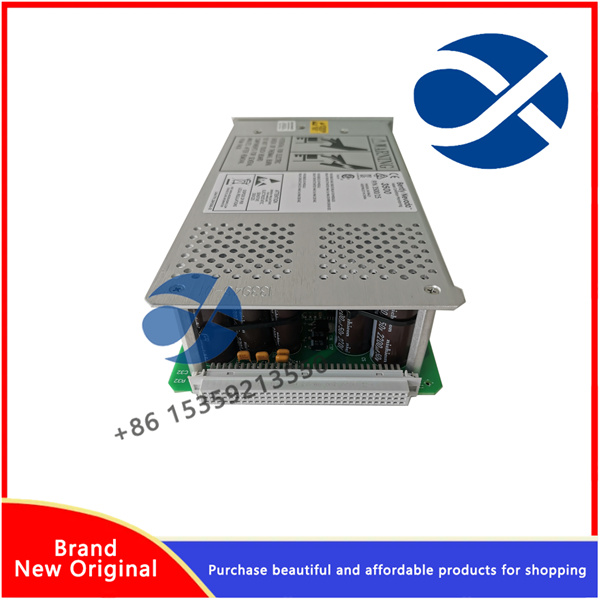

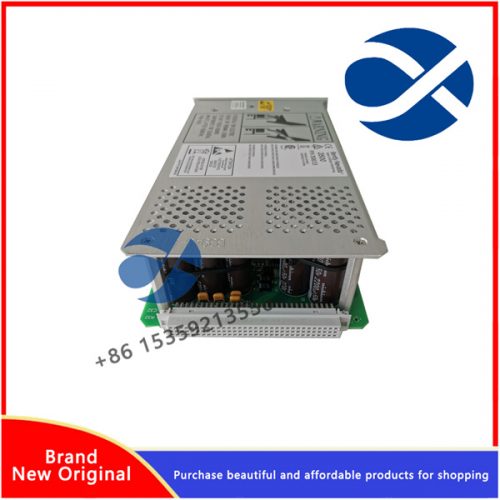

BENTLY 133396-01 Communication Gateway Module
Manufacturer: BENTLY
model name:133396-01
Country of Origin: Finland (FI)
Estonia (EE)
Customized: Yes
Minimum order quantity: 1 piece
Order multiplier: 1 piece
Part type: New
WhatsApp：15359213550
WeChat：15359213550
BENTLY 133396-01 Communication Gateway Module
Inputs
Voltage Options & Power Input Modules (PIM)
The unit supports multiple input power configurations through dedicated Power Supply and Power Input Modules (PIM):
| Input Type | Module Type | Nominal Voltage | Voltage Range (rms) | Voltage Range (pk) | Frequency |
|---|---|---|---|---|---|
| High Voltage AC | AC Power Supply + High Voltage AC PIM | 220 Vac | 175–264 Vac | 247–373 Vac | 47–63 Hz |
| Low Voltage AC | AC Power Supply + Low Voltage AC PIM | 110 Vac | 85–132 Vac | 120–188 Vac | 47–63 Hz |
| High Voltage DC | High Voltage DC Power Supply + High Voltage DC PIM | — | 88–140 Vdc | — | — |
| Low Voltage DC | Low Voltage DC Power Supply + Low Voltage DC PIM | — | 20–30 Vdc | — | — |
Notes:
• Installations using AC Power Input Modules prior to Rev. R and/or AC Power Supply Modules prior to Rev. M require lower voltage ranges (175–250 Vac rms for High Voltage AC; 85–125 Vac rms for Low Voltage AC).
• Under-voltage will not harm the supply or PIM. Over-voltage will open the fuse on the PIM.
Current Draw (Full Rack)
| Input Type | Max Current |
|---|---|
| High Voltage AC | 2.3 A rms |
| Low Voltage AC | 4.5 A rms |
| High Voltage DC | 2.5 A |
| Low Voltage DC | 10.0 A |
Outputs
| Indicator | Function |
|---|---|
| Supply OK LED | Illuminates when the power supply is operating properly. |
Environmental Limits
| Parameter | Value |
|---|---|
| Operating Temperature | –30 °C to +65 °C (–22 °F to +150 °F) |
